Manufacturing and development of wood handling machines – Forest Horse MK23 RC!

An exceptionally powerful machine suitable even for the toughest conditions!

A machine exceptionally popular among users!

For over 17 years, we have been innovating together with our customers!

We are looking for our representatives for EU countries and North America.

Production of a iron horse MK23 RC

  • Iron horse MK23 RC Forest Horse
  • An exceptional and time-tested machine
  • Over 17 years of innovation
  • Continuously expanding range of accessories:
    • Additional hydraulic circuit

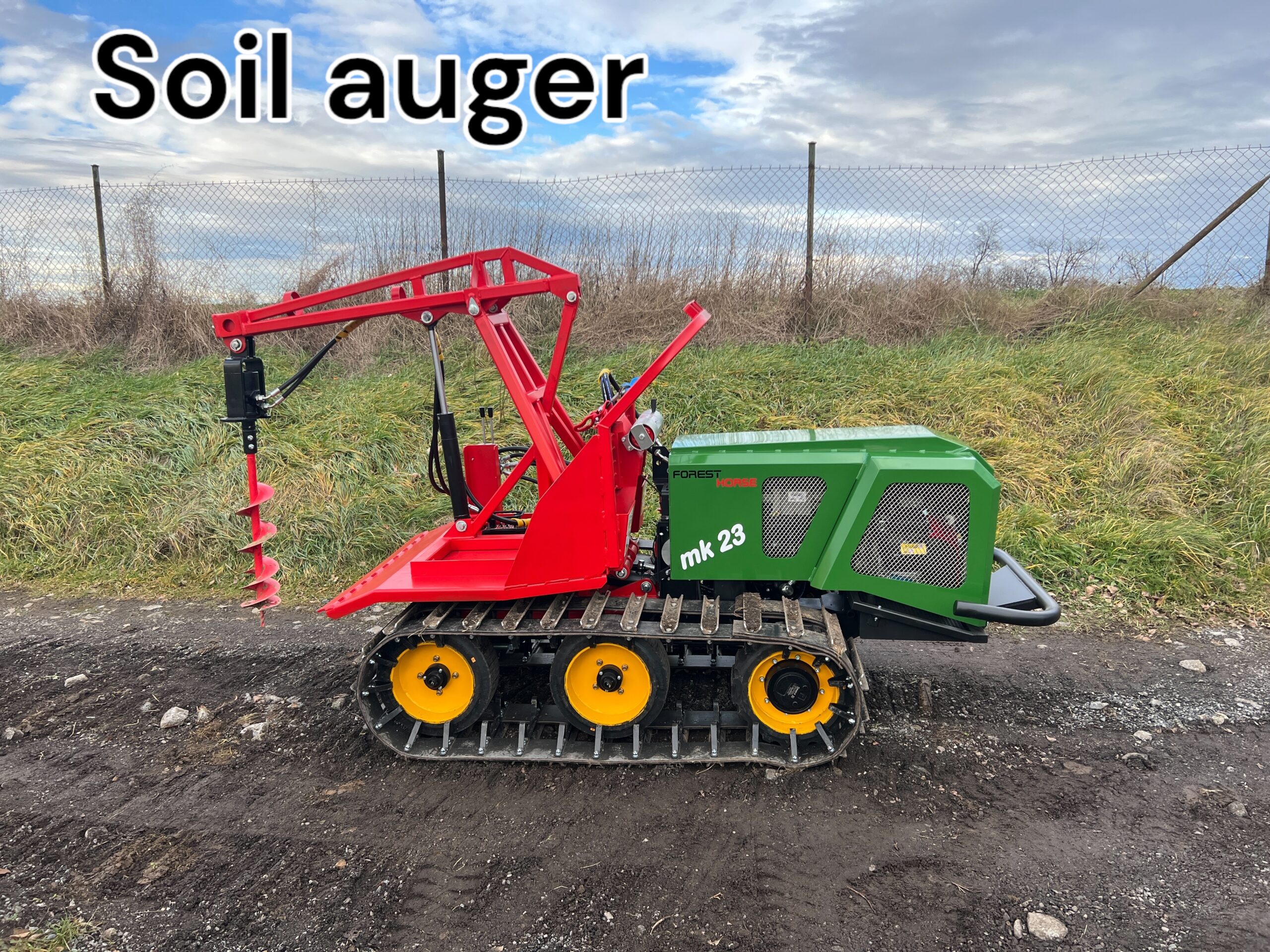

    • Earth auger up to 250mm diameter

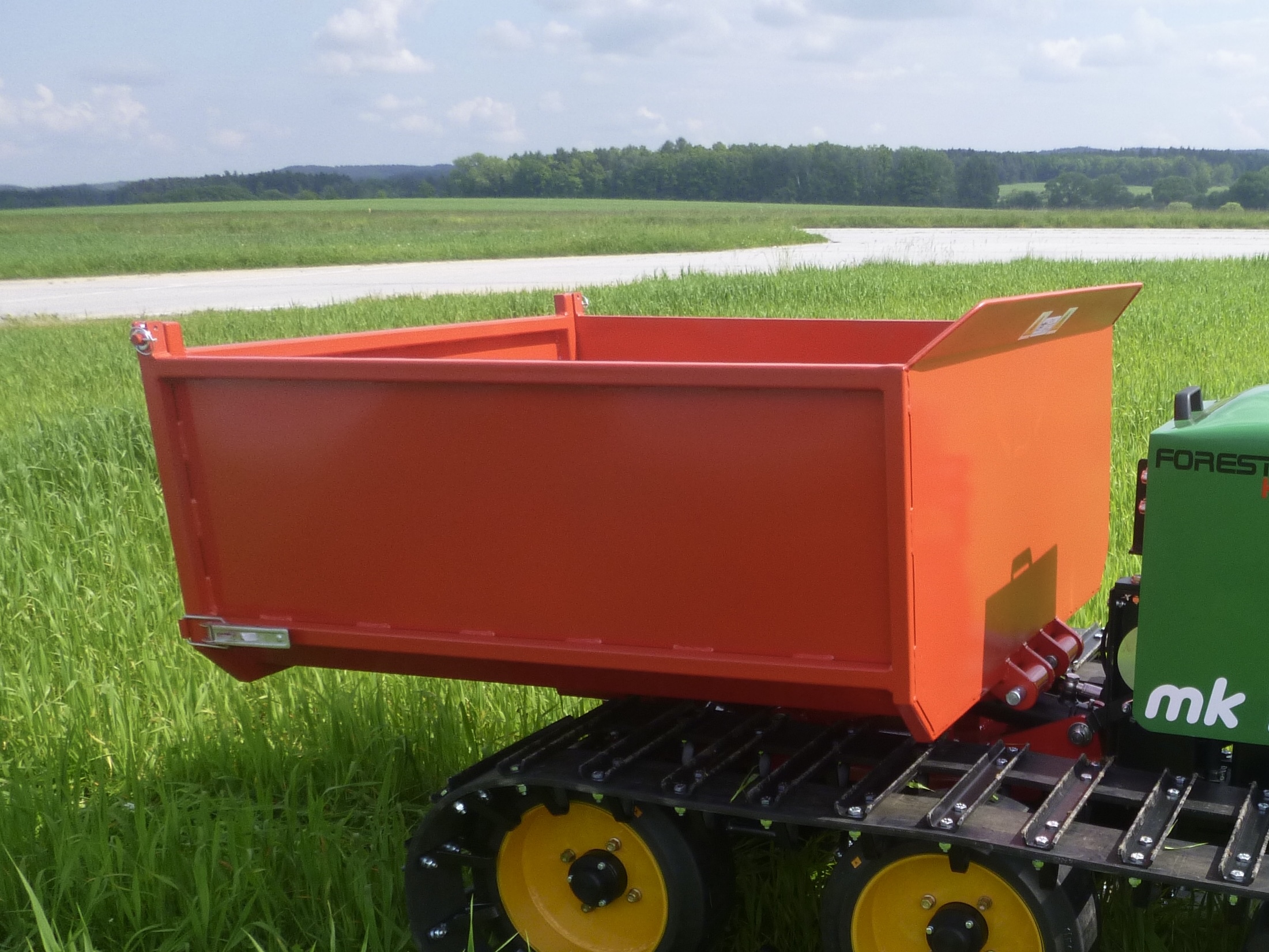

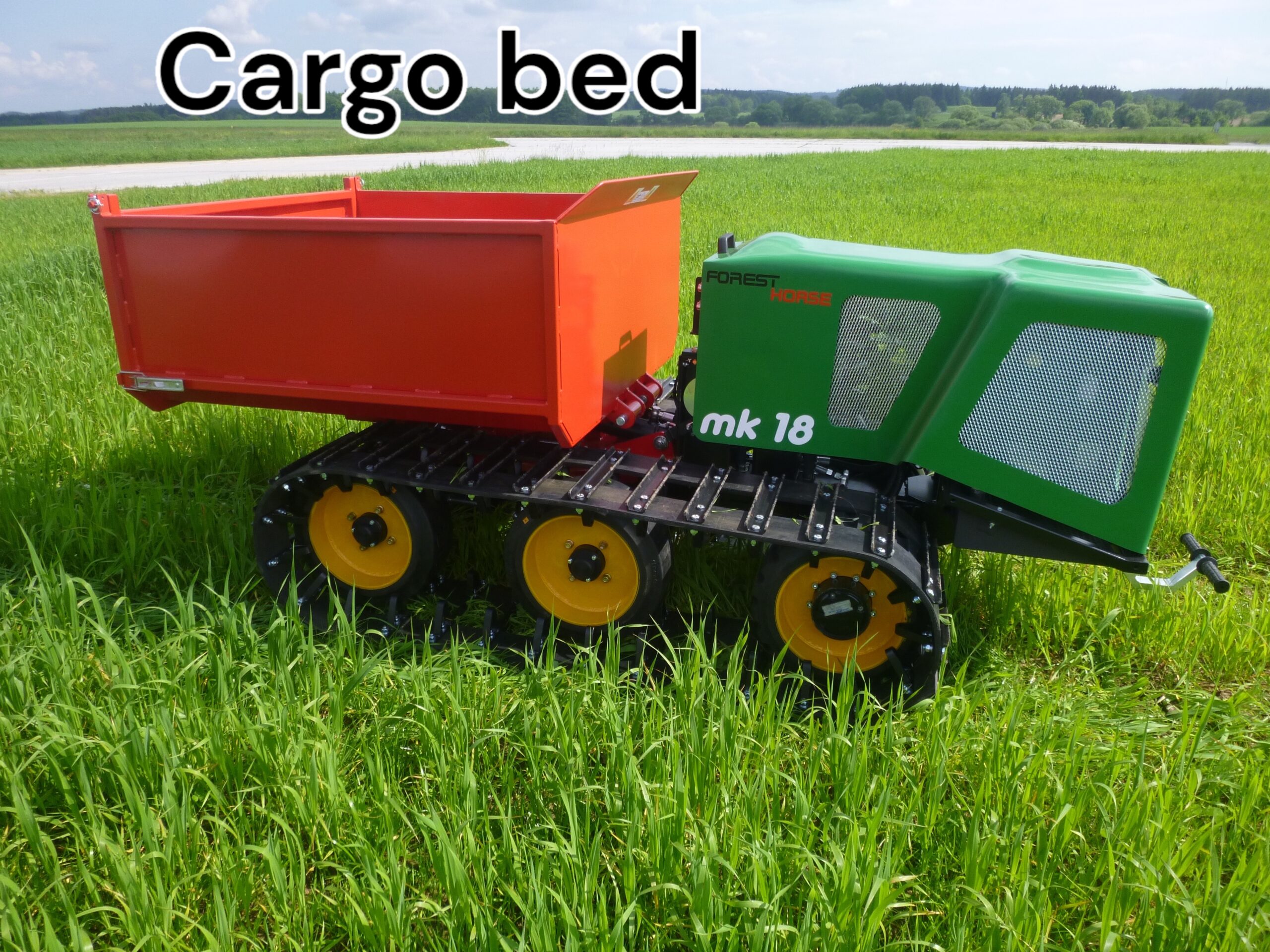

    • Cargo bed
    • Snow plow
    • Pile troley
    • Transport troley

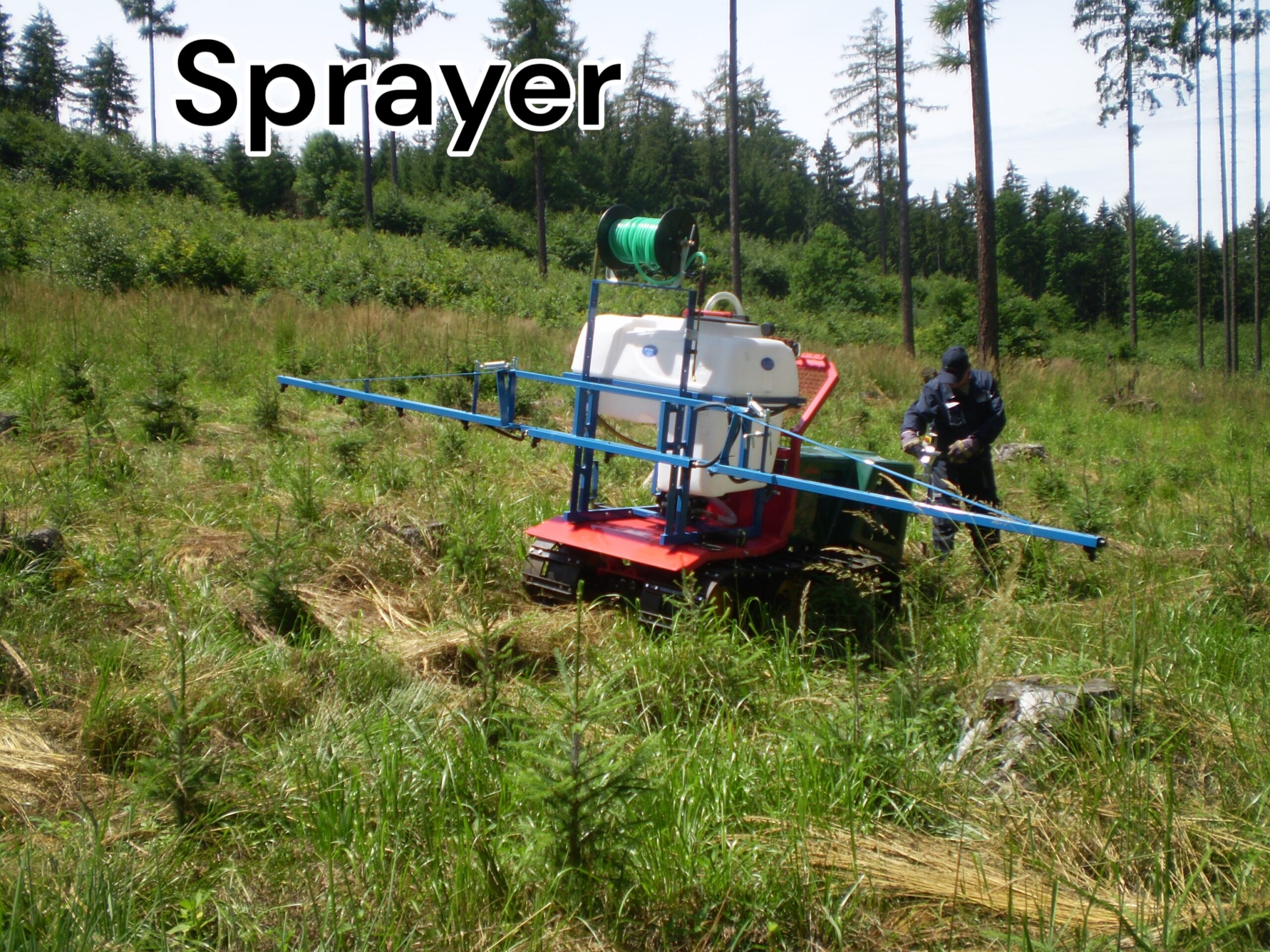

    • Sprayer

More about the service

Manufacture of gates and fences.

  • We will design automatic gates and fences together
  • Visualizations within the project free of charge
  • We will survey, consult, and manufacture everything
  • We install
  • Over 17 years of experience
  • Exceptional design (design panels, forged designs, COR-TEN)

More about the service

Stairs, railings, pergolas!

  • Stairs, railings, and pergolas
  • We will design them together according to your ideas
  • We will manufacture and install
  • Over 17 years of experience
  • We pride ourselves on the design and quality of our products
  • Efficiency of our processes = exceptional price/performance/quality ratio and fast delivery

More about the service

About the company

Our company specializes in:

  • Manufacturing and servicing of Iron Horses MK23 RC Forest Horse and their older variants.

  • Development and production of additional equipment for MK Forest Horse.

  • Design, manufacturing, and installation of sliding gates, swing gates, wicket gates, with or without drives, fences, and fence panels.

  • Design and manufacturing of stairs, railings, and pergolas.

  • Design and manufacturing of complex metal structures.

Our customers:

  • Forestry companies, loggers, owners of private, state, and church forests
  • Construction and development companies
  • Municipal offices, municipal technical services

  • Small business owners

  • Private individuals, property owners

100%

QUALITY OF ALL PRODUCTS AND SERVICES PROVIDED

ADHERENCE TO DELIVERY AND IMPLEMENTATION DEADLINES

THE MOST FAVORABLE RATIO: PERFORMANCE – QUALITY – PRICE

Services

Our company specializes in the production of the Iron Horse Forest Horse MK23 RC – a fully functional extraction machine.

We collaborate on innovations and applications where our MK23 RC is the foundation.

We cooperate with Tomas Bata University in Zlín (automatic tree planter) and Mendel University in Brno (debarker).

We are engaged in the design, manufacturing, and installation of gates, fences, stairs, railings, and pergolas.

ČSN EN ISO 11850
CE 2024

Production MK23

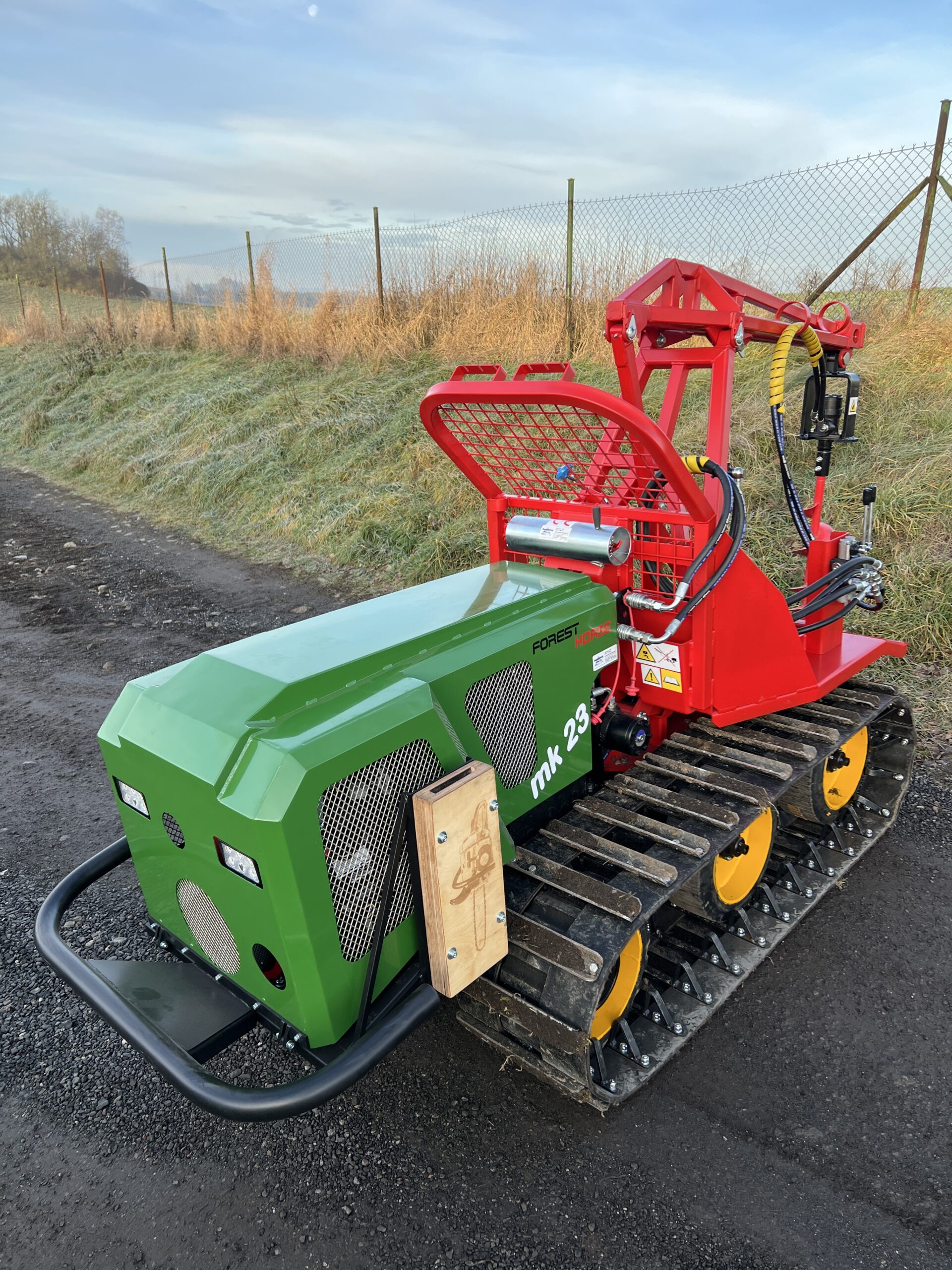

Forest Horse MK23 RC

Engine Options Honda GX 630 – 15.5 kW / 21.1 HP or
Honda GX 690 – 16.5 kW / 22.4 HP
48 Nm at 2,500 rpm.
Hydraulic System Fully hydrostatic drive. Optional equipment includes an additional hydraulic circuit 301/180 bar for powering auxiliary devices independently of the machine’s drive.
Travel Speed 4 – 6 km/h
Winch Speed / Power 40 m/min at 10 kN or 20 m/min at 13 kN.
Machine Control Radio-controlled functions: winch, ramping blade, engine speed, and start; proportional hydraulic control, including machine movement, all operated by radio (RC model).
Slope Accessibility up to 45°
Track Width, Ground Pressure 40 cm.
Empty: 1.4 N/cm², fully loaded: 2.15 N/cm².
Overall Dimensions L / W / H – 2600 / 1200 / 1500 mm.
Total Weight 980 kg

  • A robust machine with a low center of gravity, ensuring excellent stability in extreme terrain.

  • Three-axle chassis – the first axle is powered, with hydraulic track drive.

  • Powerful and reliable Honda GX series engines (up to 22.4 HP).

  • The winch is equipped as standard with a 6.3 mm diameter rope, 30-40 meters long, two sliders, and two chain slings. Winch pulling force is 1,500 kg, equivalent to 1.8 to 2 m³.

  • Rubber tracks, interconnected by steel crossbars, run on full-rubber, super-elastic wheels; mechanical tensioning – each track is adjusted separately.
  • Remote control for the tilting blade (ensures stable positioning of the machine during wood hauling, preventing overturning, reducing time needed for retying logs, enabling log alignment, stacking at loading sites, and gathering or clearing branches).
  • Remote-controlled winch (ensures safe operation, eliminates time lost while navigating terrain obstacles when hauling logs – the operator moves alongside the logs, handling obstacles immediately. At the end of the operation, the operator reaches the loaded burden and can continue directly to the unloading site).
  • Remote control for the engine (starting, throttle adjustment allows maximum engine RPM and power to be used only when necessary – significantly saves fuel and enhances eco-friendliness, eliminating time lost returning to the machine for manual engine controls).

Have a question?

Get in touch with us; we’d be happy to discuss potential collaboration with you.

Honda

Quality engines for our Iron Horses.

DESIGN, PRODUCTION, AND INSTALLATION

Manufacturing of gates and fences

  • Sliding, telescopic, cantilever, folding, swinging gates.

  • Gate widths up to 15 meters

  • We use high-quality components from the company BENINCA.

  • Fences – welded, wrought iron, expanded metal, and custom-designed infills; we install and custom-fit 2D and 3D panels, as well as classic square mesh fencing

  • Možnost použití designových panelů a výplní od fa. 3dlightwork.com

  • More than 17 years of experience.

  • 3D model and visualization within the project – free of charge!

Have a question?

Get in touch with us; we’d be happy to discuss potential collaboration with you.

3Dlightwork

Designové plotové výplně a kovový design.

Benica

Kvalitní pohony pro naše brány.

Custom manufacturing
Stairs, railings, pergolas
  • Design of structures – manufacturing – installation – turnkey solutions
  • We use iron, stainless steel, and aluminum.

Have a question?

Get in touch with us; we’d be happy to discuss potential collaboration with you.

We produce:

MOTOR HORSE – FOREST HORSE

GATES, GATEWAYS, DOORS

FENCES

STAIRS

RAILINGS

STEEL STRUCTURES
